10007455 | Fischer Elektronik

Socket header, 14 pole, pitch 2.54 mm, straight, gray, 10007455

Order No.: 56F8002
EAN: 4099891002107
MPN:
10007455
PV 14 G
Series: PV

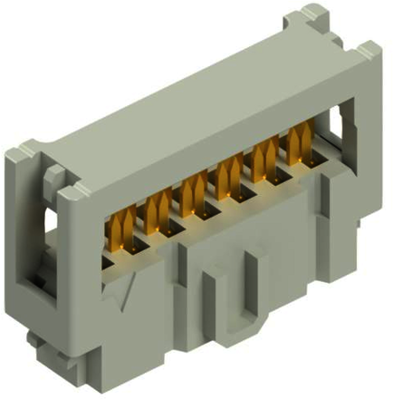

10007455 Fischer Elektronik PCB Connection Systems Image 1

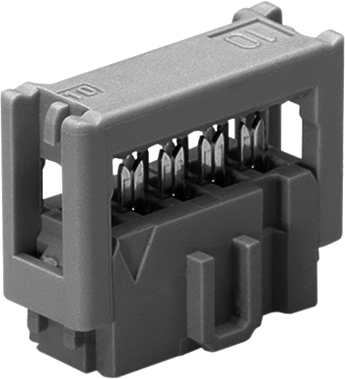

10007455 Fischer Elektronik PCB Connection Systems Image 2
10007455 Fischer Elektronik PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
3.2368 € *
Available: 101 pcs.
Total Price:
3.24 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2368 €
25 pcs.
2.7489 €
100 pcs.
2.5347 €
250 pcs.
2.4038 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connectors for ribbon cables, type Fischer PV.

For insertion on pin headers (e.g. type 511.030, TE ConnectivityAMP Modu II etc.), with automatic insulation displacement terminals for wires from AWG 28 to 30 and max. insulation diameter of 1.1 mm; Contact finish: gold-plated on nickel primer. Insulator: polycarbonate. Color: gray, RAL 7032. Operating temperatures: –55 to +125 °C. Rated current: 2.0 A. Rated voltage: 250 Volt.

Technical attributes (type, number of poles, dimensions): PV 14, 14-pole, A 22.40/B 15.24 mm

Technical specifications
Filter Property Value
Rated voltage 250 V
Rated current 2 A
Type of locking Yes
Grid 2.54 mm
Connection plating tin-plated
Number of rows 2
Orientation straight
contact surface gold-plated
Version socket header
Colour gray
Connection IDC connection
Pin number 14 pole
Additional parts equipped
Contact type socket
Logistics
Property Value
Country of origin CH
Customs tariff number 85369095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
