10005972 | Fischer Elektronik

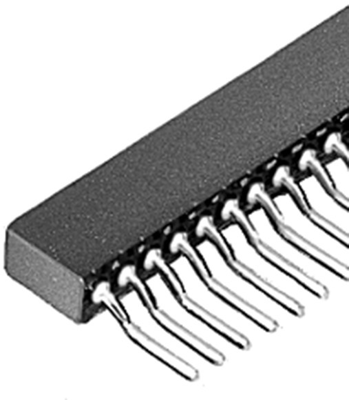

Socket header, 50 pole, pitch 1.27 mm, angled, black, 10005972
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
21.0511 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
21.05 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0511 €
5 pcs.
19.9682 €
10 pcs.
18.6711 €
25 pcs.
17.0289 €
*incl. VAT plus shipping costs
Subject to prior sale
Precision socket headers SMD, type BLR 7..
1.27 mm grid, mates pin headers with 0.35 mm to 0.45 mm round Pins, for surface mounting. Insertion parallel to the PCB surface. Contact finish: tinned sleeve, gold-plated spring. Operating temperatures: -40 to +105 °C.
Type: BLR 7SMD, single - row, 50 contacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 50 pole | |
| Grid | 1.27 mm | |
| Connection | SMD | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 100 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
