10005971 | Fischer Elektronik

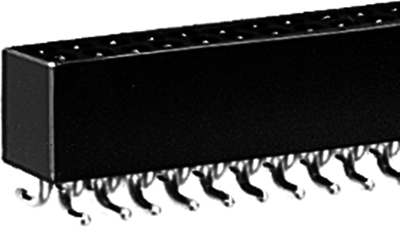

Socket header, 100 pole, pitch 1.27 mm, straight, black, 10005971
Unit Price (€ / pc.)
39.3295 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
39.33 € *
Price list
Quantity
Price per unit*
1 pcs.
39.3295 €
2 pcs.
36.7948 €
5 pcs.
34.5695 €
10 pcs.
32.1300 €
*incl. VAT plus shipping costs
Subject to prior sale
Precision socket headers SMD, type BLR 5..
1.27 mm grid, mates pin headers with 0.35 mm to 0.45 mm round Pins, for surface mounting. Insertion direction at a right angle to the PCB surface. Contact finish: tinned sleeve, gold-plated spring. Operating temperatures: -40 to +105 °C.
Type: BLR 6SMD, dual - row, 2 x 50 contacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 100 pole | |
| Grid | 1.27 mm | |
| Connection | SMD | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 100 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
