10007704 | Fischer Elektronik
Silicon wafer for semiconductors, 10007704
Unit Price (€ / pc.)
0.7497 € *
Available: 255 pcs.
Total Price:
7.50 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7497 €
50 pcs.
0.6069 €
250 pcs.
0.5117 €
1000 pcs.
0.4284 €
2500 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale
Silicon wafers and sections for semiconductors, type Fischer WS.
Standard version of 0.3 mm thickness; Operating temperatures: –60 to +180 °C. Thermal resistance: 0.4 K/W. Dielectric strength: 10 kV. Elongation: 100 %.

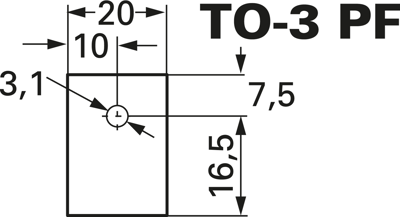

Technical attributes (type, for package size, dimensions): WS-3P, TO 3PF, 24 x 20 mm, 3.1 mm perforation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | silicone | |
| Dielectric strength | 10000 V/mm | |
| max. operating temperature | 180 °C | |
| Length | 24 mm | |
| Width | 20 mm | |
| min. operating temperature | -60 °C | |
| Thickness | 0.3 mm | |
| Suitable for | TO-3 | |
| Version | silicon disc |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85462000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
