Silicon wafer for semiconductors, 10007698
Unit Price (€ / pc.)
0.5831 € *
Available: 749 pcs.
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5831 €
50 pcs.
0.4284 €
250 pcs.
0.3451 €
1000 pcs.
0.3011 €
2500 pcs.
0.2618 €
*incl. VAT plus shipping costs
Subject to prior sale
Silicon wafers and sections for semiconductors, type Fischer WS.
Standard version of 0.3 mm thickness; Operating temperatures: –60 to +180 °C. Thermal resistance: 0.4 K/W. Dielectric strength: 10 kV. Elongation: 100 %.

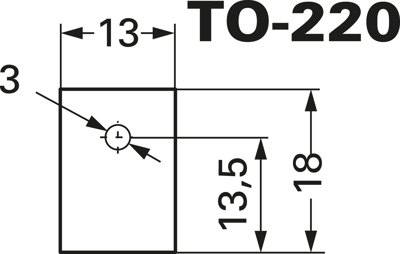

Technical attributes (type, for package size, dimensions): WS-220, TO 220, 18 x 13 mm, 3.0 mm perforation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | silicone | |
| Dielectric strength | 10000 V/mm | |
| max. operating temperature | 180 °C | |
| Length | 18 mm | |
| Width | 13 mm | |
| min. operating temperature | -60 °C | |
| Thickness | 0.3 mm | |
| Suitable for | TO-220 | |
| Version | silicon disc |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
