10007656 | Fischer Elektronik
Silicon wafer for semiconductors
Unit Price (€ / pc.)
0.6664 € *
Available: 490 pcs.
Leadtime: 11 Weeks **
Total Price:
6.66 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6664 €
50 pcs.
0.5593 €
250 pcs.
0.4879 €
1000 pcs.
0.4403 €
2000 pcs.
0.3927 €
*incl. VAT plus shipping costs
**Subject to prior sale
Glass fiber-reinforced, type WG.
0.2 mm thickness, elongation max. 2.0 %; Operating temperatures: –60 to +180 °C. Thermal resistance: 0.42 K/W. Dielectric strength: 6.5 kV.

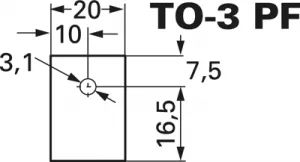

Technical attributes (type, for package size, dimensions): WG-3P, TO 3PF, 24 x 20 mm, 3.1 mm perforation
Technical specifications
| Version | silicon disk | |
| Width | 20 mm | |
| Thickness | 0.2 mm | |
| Dielectric strength | 6500 V/mm | |
| Suitable for | TO-3 | |
| Length | 24 mm | |
| Material | silicone | |
| max. operating temperature | 180 °C | |
| min. operating temperature | -60 °C |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85462000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
