Silicon wafer for semiconductors, 10007653
Unit Price (€ / pc.)
0.5950 € *
Available: 75 pcs.
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5950 €
10 pcs.
0.5474 €
25 pcs.
0.5117 €
50 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale
Glass fiber-reinforced, type WG.
0.2 mm thickness, elongation max. 2.0 %; Operating temperatures: –60 to +180 °C. Thermal resistance: 0.42 K/W. Dielectric strength: 6.5 kV.

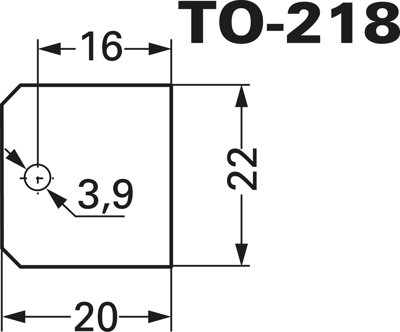

Technical attributes (type, for package size, dimensions): WG-218, TO 218, 22 x 20 mm, 3.9 mm hole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | silicon disc | |
| Suitable for | TO-218 | |
| Material | silicone | |
| Dielectric strength | 6500 V/mm | |
| Thickness | 0.2 mm | |
| Length | 22 mm | |
| Width | 20 mm | |
| min. operating temperature | -60 °C | |
| max. operating temperature | 180 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
