10007125 | Fischer Elektronik

Kapton insulating wafer for semiconductors, 10007125

Order No.: 61B5874
EAN: 4099879024473
MPN:
10007125
KAP 220 K
Series: KAP
10007125 Fischer Elektronik Mounting pads
Image may differ
Unit Price (€ / pc.)
1.0353 € *
Available: 3,923 pcs.
Next delivery: 1,350 pcs. on 2025-06-17
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0353 €
10 pcs.
0.9877 €
50 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

Kapton insulating wafers, type Fischer KAP.

Flexible version, coated on both sides with silicon-free thermal transfer layer; Material: polyamide (Kapton). Material thickness: 0.077 mm (base material: 0.05 mm). Thermal conductivity: 0.45 W/mK. Thermal resistance: 0.15 K/W. Elongation: 30 %. Dielectric strength: 7.8 kV. Operating temperatures: –40 to +150 °C. Inflammability class: UL 94 V-0.

For TO 218/220/247/248, type KAP.

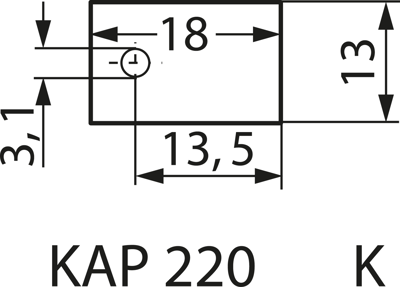

Technical attributes (type, for package, version): KAP 220 K, TO 220, perforated

Technical specifications
Thickness 0.07 mm
Width 13 mm
Length 18 mm
Version kapton insulating wafer
min. operating temperature -40 °C
Material PA
Suitable for TO-220
max. operating temperature 150 °C
Dielectric strength 7800 V/mm
Logistics
Country of origin US
Customs tariff number 85469010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
