10007483 | Fischer Elektronik
2 mm socket, solder connection, black, 10007483
Unit Price (€ / pc.)
1.4042 € *
Available: 170 pcs.
Total Price:
14.04 € *
Price list
Quantity
Price per unit*
10 pcs.
1.4042 €
50 pcs.
1.2376 €
250 pcs.
1.0829 €
1000 pcs.
0.9401 €
*incl. VAT plus shipping costs
Subject to prior sale

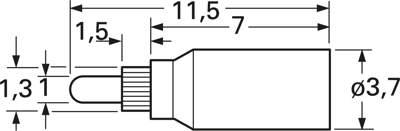

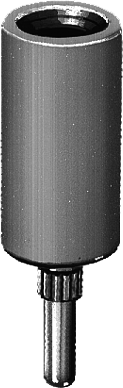

Solder receptacles, 2.0 mm, insulated, type Fischer SB 13.
For 2.0 mm plug pins, plastic insulation, slotted contact made of brass with 2.0 µm nickel primer and 0.25 µm gold plating.
Type: SB 13, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Touch safe | No | |
| diameter | 2 mm | |
| Length | 11 mm | |
| Connection | solder connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
