10007480 | Fischer Elektronik
2.3 mm socket, solder connection, mounting Ø 3.1 mm, silver, 10007480
Unit Price (€ / pc.)
1.9040 € *
Available: 618 pcs.
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9040 €
10 pcs.
1.7612 €
50 pcs.
1.5946 €
100 pcs.
1.4399 €
*incl. VAT plus shipping costs
Subject to prior sale
Solder receptacles, 1.0 mm, bright, type Fischer SB 12.
For 1.0 mm pin contacts; Material: brass, with 2.0 µm nickel primer and 0.25 µm gold layer. Beryllium copper spring.
Type: SB 12, receptacle

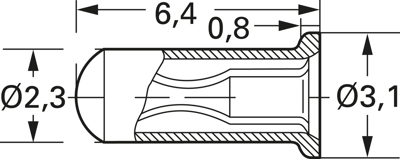

Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2.3 mm | |
| Installation diameter | 3.1 mm | |
| contact surface | gold-plated | |
| Touch safe | No | |
| Connection | solder connection | |
| Length | 6 mm | |
| Rated current | 4 A | |
| Colour | silver | |
| Version | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
