10007478 | Fischer Elektronik

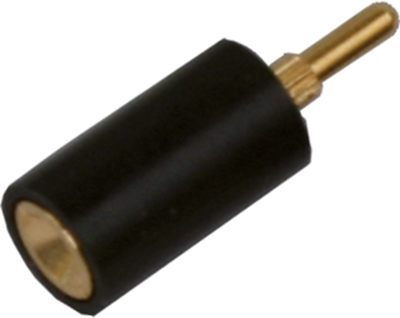

4 mm socket, solder connection, black, 10007478
Unit Price (€ / pc.)
1.1186 € *
Available: 213 pcs.
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1186 €
10 pcs.
1.0115 €
50 pcs.
0.9282 €
100 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale
Solder receptacles, 1.0 mm, insulated, type Fischer SB 9.
For 1.0 mm plug pins, slotted contact made of brass with 2.0 µm nickel primer and 0.25 µm gold plating, black plastic insulation.
Type: SB 9, receptacle
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| diameter | 4 mm | |
| Colour | black | |
| Connection | solder connection | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Touch safe | No | |
| Length | 11.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
