10151958 | Fischer Elektronik

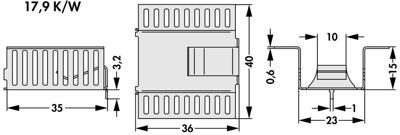

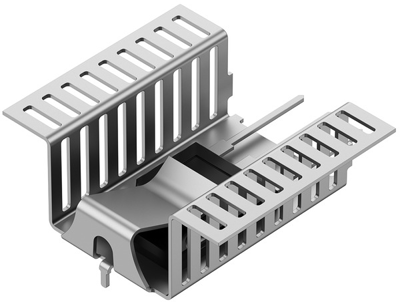

Clip-on heatsink, 36 x 23 x 15 mm, 17.9 K/W, solderable surface
Order No.: 70B380
EAN: 4099889475036
MPN:
10151958
FK 282 MI 247 H
Unit Price (€ / pc.)
1.7969 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Heat sink, FK 282 MI 247 H, Fischer Elektronik
Heatsink pluggable
Features
- Universal clip-on heatsinks for design TO 218, TO 247, TO 248, SIP-Multiwatt and similar
- Integrated clamp geometry for a secure fixing of the device
- Angled designs with enlarged surface
- Modifications and special designs according to customer’s specifications
Technical data
- Version: Clip-on Heat sink
- Material: Cu
- Length: 40 mm
- Suitable for: TO220|TO248|TO247|TO218|SIP Multiwatt
Technical specifications
| Version | clip-on heatsink | |
| Width | 23 mm | |
| Suitable for | TO220, TO248, TO247, TO218, SIP Multiwatt | |
| Height | 15 mm | |
| Length | 36 mm | |
| Material | copper | |
| Max. heat resistance | 17.9 K/W | |
| Surface type | solderable surface |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74152900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
