10151839 | Fischer Elektronik

Clip-on heatsink, (L x W x H) 30 x 23 x 9 mm, 19.4 K/W, solderable surface, 10151839

Order No.: 70B345
EAN: 4099889474688
MPN:
10151839
FK 271 MI 247 V
Series: FK

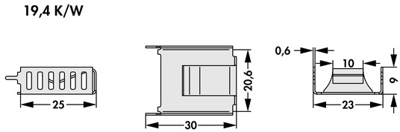

10151839 Fischer Elektronik Heat Sinks Image 1

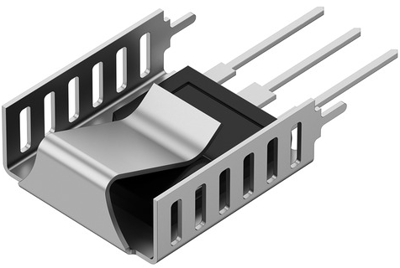

10151839 Fischer Elektronik Heat Sinks Image 2
Image may differ
Unit Price (€ / pc.)
1.3566 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3566 €

Heat sink, FK 271 MI 247 V, Fischer Elektronik

Heatsink pluggable

Features

  • Universal clip-on heatsinks for design TO 218, TO 247, TO 248, SIP-Multiwatt and similar
  • Integrated clamp geometry for a secure fixing of the device
  • Angled designs with enlarged surface
  • Modifications and special designs according to customer’s specifications

Technical data

  • Version: Clip-on Heat sink
  • Material: Cu
  • Length: 30 mm
  • Suitable for:  TO220|TO248|TO247|TO218|SIP Multiwatt
Technical specifications
Filter Property Value
Width 23 mm
Height 9 mm
Length 30 mm
Max. heat resistance 19.4 K/W
Version clip-on heatsink
Material copper
Surface type solderable surface
Suitable for TO220, TO248, TO247, TO218, SIP Multiwatt
Logistics
Property Value
Country of origin DE
Customs tariff number 74152900
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
