10104436 | Fischer Elektronik
Extruded heatsink, (L x W x H) 50 x 42.7 x 12.5 mm, 9.1 to 4 K/W, black anodized, 10104436
Unit Price (€ / pc.)
5.7477 € *
Available: 21 pcs.
Next delivery: 50 pcs. on 2025-10-28
Total Price:
5.75 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7477 €
10 pcs.
5.0575 €
100 pcs.
4.4387 €
250 pcs.
4.2721 €
1000 pcs.
3.9865 €
*incl. VAT plus shipping costs
Subject to prior sale

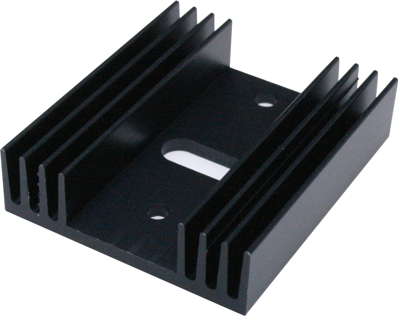

Profile heatsink with universal perforation grid, type Fischer SK 59.
Made of black anodized aluminum. Perforation. for example, for TO 220 and TOP 3 packages.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 42.7 mm | |
| Surface type | black anodized | |
| Min. heat resistance | 4 K/W | |
| Length | 50 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Height | 12.5 mm | |
| Max. heat resistance | 9.1 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
