Clip-on heatsink, (L x W x H) 3.5 x 9.5 x 15 mm, 80 K/W, black anodized, 10037497
Unit Price (€ / pc.)
0.4165 € *
Available: 434 pcs.
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
2 pcs.
0.4165 €
20 pcs.
0.2273 €
100 pcs.
0.2011 €
1000 pcs.
0.1773 €
10000 pcs.
0.1523 €
*incl. VAT plus shipping costs
Subject to prior sale

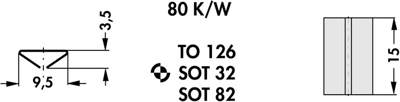

Miniature heatsink, type Fischer Typ KK 92.
Snap-on heatsink for SOT 32, TO 5, TO 126, SOT 82, made of blackened spring bronze.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 9.5 mm | |
| Height | 15 mm | |
| Length | 3.5 mm | |
| Max. heat resistance | 80 K/W | |
| Version | clip-on heatsink | |
| Material | spring bronze | |
| Surface type | black anodized | |
| Suitable for | SOT32, TO126, SOT82 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74072900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
