10037039 | Fischer Elektronik

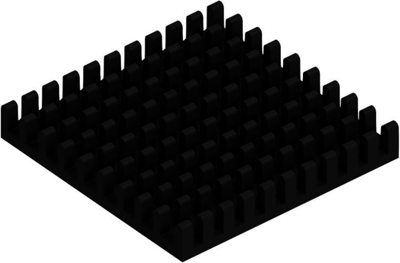

IC heatsink, (L x W x H) 40 x 40 x 6 mm, 14.6 to 5.8 K/W, black anodized, 10037039
Unit Price (€ / pc.)
2.8679 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.87 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8679 €
25 pcs.
2.4633 €
100 pcs.
2.2610 €
250 pcs.
2.1539 €
1000 pcs.
1.9635 €
*incl. VAT plus shipping costs
Subject to prior sale
Heatsink for BGAs, type Fischer ICK BGA.
Made of black anodized aluminum, suitable for Ball Grid Arrays, matches the respective type precisely
With 35 x 35 and 40 x 40 matrix, type ICK BGA.

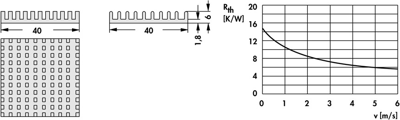

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 14.6 K/W | |
| Width | 40 mm | |
| Surface type | black anodized | |
| Height | 6 mm | |
| Material | aluminum | |
| Version | IC heatsink | |
| Suitable for | BGA | |
| Min. heat resistance | 5.8 K/W | |
| Length | 40 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
