10034969 | Fischer Elektronik

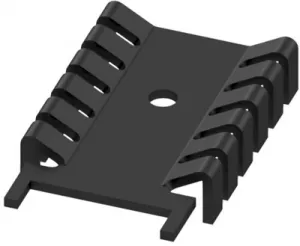

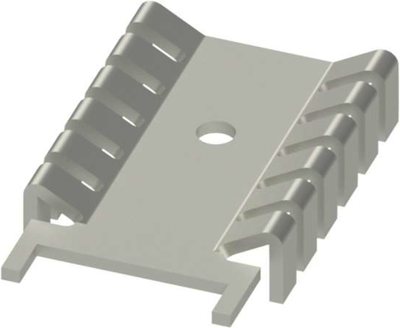

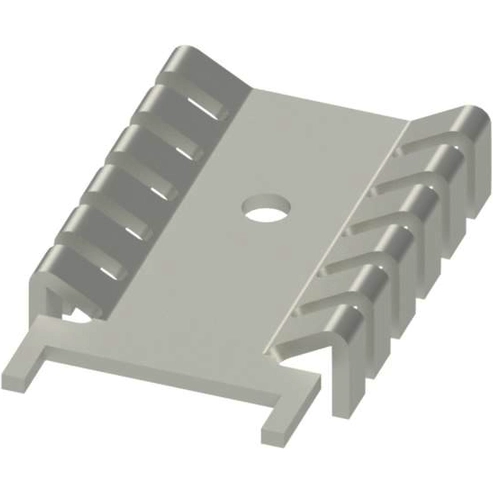

Finger shaped heatsink, (L x W x H) 35.6 x 22 x 6.7 mm, 21 K/W, black anodized, 10034969
Unit Price (€ / pc.)
1.3566 € *
Available: 472 pcs.
Total Price:
13.57 € *
Price list
Quantity
Price per unit*
10 pcs.
1.3566 €
50 pcs.
1.2019 €
250 pcs.
1.0234 €
1000 pcs.
0.9044 €
2500 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale
Heatsink with perforation for direct soldering, type Fischer FK 218.
For TO 220 and SOT 32. Made of aluminum with solderable finish.

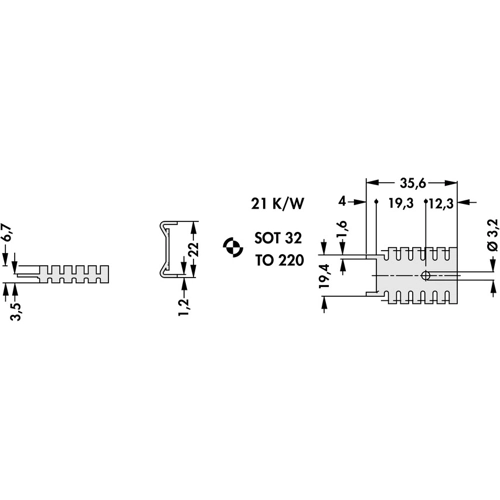

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surface type | black anodized | |
| Height | 6.7 mm | |
| Version | finger shaped heatsink | |
| Material | aluminum | |
| Width | 22 mm | |
| Suitable for | TO220, SOT32 | |
| Length | 35.6 mm | |
| Max. heat resistance | 21 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76169990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
