10034943 | Fischer Elektronik

Extruded heatsink, (L x W x H) 38.1 x 42 x 25 mm, 6.5 K/W, black anodized, 10034943

Order No.: 65B4832
EAN: 4099889471847
MPN:
10034943
SK 129 38,1 STS

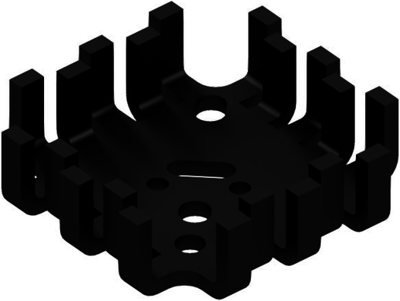

10034943 Fischer Elektronik Heat Sinks Image 1
10034943 Fischer Elektronik Heat Sinks Image 2
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
Finger shaped heatsink, (L x W x H) 45 x 45 x 12.7 mm, 8 K/W, black anodized, 10034943
Finger shaped heatsink, (L x W x H) 45 x 45 x 12.7 mm, 8 K/W, black anodized, 10034943
Order No.: 65B483
Manufacturer: Fischer Elektronik
per pc. 1.6184 € *

Heatsink with perforation, type Fischer SK 129-STS.

With solder pins. For TO 220, SOT 32, and TO 3 P. For screw mounting. Made of black anodized aluminum.

Technical specifications
Surface type black anodized
Height 25 mm
Material aluminum
Version extruded heatsink
Max. heat resistance 6.5 K/W
Length 38.1 mm
Width 42 mm
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
