10022763 | Fischer Elektronik

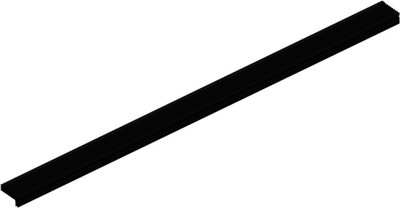

Extruded heatsink, (L x W x H) 1000 x 55 x 28 mm, 6.2 to 2.8 K/W, black anodized, 10022763
Unit Price (€ / pc.)
90.8446 € *
Available: 6 pcs.
Total Price:
90.84 € *
Price list
Quantity
Price per unit*
1 pcs.
90.8446 €
5 pcs.
85.3944 €
15 pcs.
82.1457 €
50 pcs.
78.4924 €
150 pcs.
75.2199 €
*incl. VAT plus shipping costs
Subject to prior sale

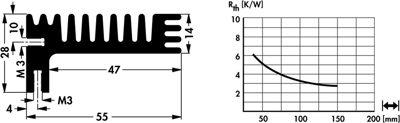

Profile heatsink, type Fischer SK 96.
Made of black anodized aluminum, non-perforated, for example, for TO 220 or TOP 3 packages and similar. Space saving design for use on PCBs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 6.2 K/W | |
| Material | aluminum | |
| Suitable for | PCB mounting | |
| Version | extruded heatsink | |
| Min. heat resistance | 2.8 K/W | |
| Width | 55 mm | |
| Surface type | black anodized | |
| Height | 28 mm | |
| Length | 1000 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
