10022759 | Fischer Elektronik
Extruded heatsink, (L x W x H) 84 x 55 x 28 mm, 6.2 to 2.8 K/W, black anodized, 10022759
Unit Price (€ / pc.)
7.9730 € *
Available: 75 pcs.
Total Price:
7.97 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9730 €
10 pcs.
7.0210 €
100 pcs.
6.1642 €
250 pcs.
5.9024 €
1000 pcs.
5.5216 €
*incl. VAT plus shipping costs
Subject to prior sale

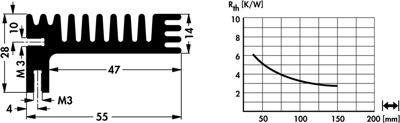

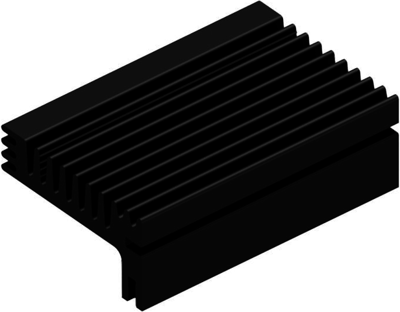

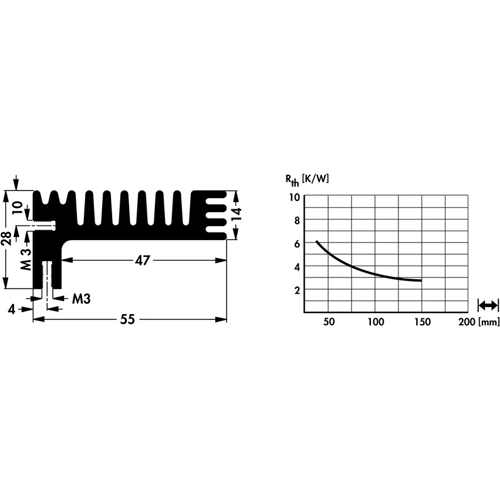

Profile heatsink, type Fischer SK 96.
Made of black anodized aluminum, non-perforated, for example, for TO 220 or TOP 3 packages and similar. Space saving design for use on PCBs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 6.2 K/W | |
| Version | extruded heatsink | |
| Min. heat resistance | 2.8 K/W | |
| Width | 55 mm | |
| Material | aluminum | |
| Height | 28 mm | |
| Surface type | black anodized | |
| Suitable for | PCB mounting | |
| Length | 84 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
