10022706 | Fischer Elektronik
Extruded heatsink, (L x W x H) 100 x 190 x 50 mm, 0.99 to 0.4 K/W, black anodized, 10022706
Unit Price (€ / pc.)
34.3553 € *
Available: 44 pcs.
Total Price:
34.36 € *
Price list
Quantity
Price per unit*
1 pcs.
34.3553 €
5 pcs.
32.2966 €
15 pcs.
31.0590 €
50 pcs.
29.6786 €
150 pcs.
28.4529 €
*incl. VAT plus shipping costs
Subject to prior sale

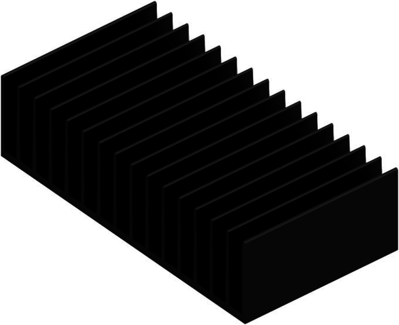

Profile heatsink, type Fischer SK 90.
Made of black anodized aluminum, also particularly suitable for rear panel mounting. Heatsink without perforation. Meter section for orders as of 10 items on request.

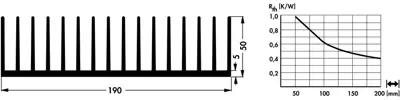

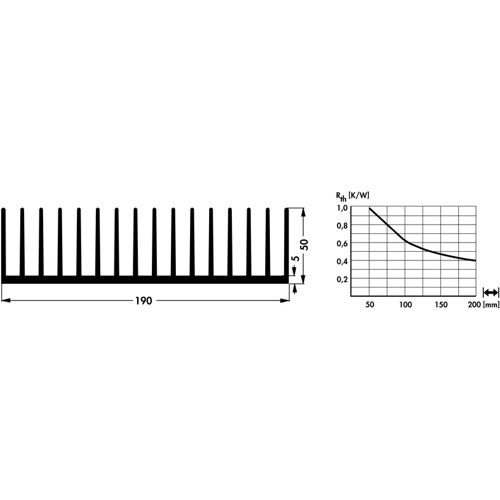

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | aluminum | |
| Width | 190 mm | |
| Version | extruded heatsink | |
| Max. heat resistance | 0.99 K/W | |
| Surface type | black anodized | |
| Min. heat resistance | 0.4 K/W | |
| Length | 100 mm | |
| Height | 50 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
