10021620 | Fischer Elektronik

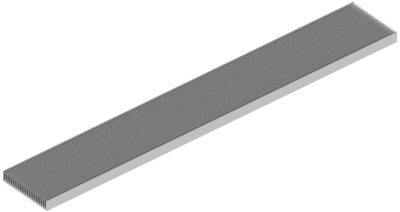

Extruded heatsink, (L x W x H) 1000 x 150 x 27 mm, 1.8 to 1.15 K/W, natural aluminum, 10021620
Unit Price (€ / pc.)
101.9354 € *
Standard delivery time from the manufacturer is: 2 Weeks
Standard extruded heatsink, 10021620, Fischer Elektronik
Standard extruded heatsink with thermal resistance: 1.8-1.15 K/W, Surface: raw degreased aluminium (by the metre raw aluminium), Length: 1000 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 1000 mm | |
| Max. heat resistance | 1.8 K/W | |
| Height | 27 mm | |
| Material | aluminum | |
| Min. heat resistance | 1.15 K/W | |
| Width | 150 mm | |
| Surface type | natural aluminum | |
| Version | extruded heatsink |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
