10021605 | Fischer Elektronik

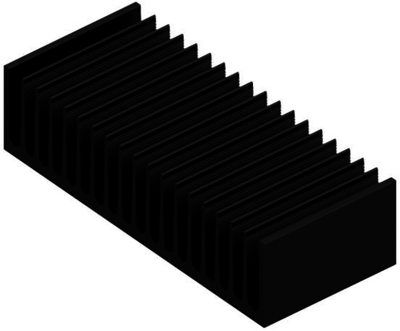

Extruded heatsink, (L x W x H) 100 x 235 x 60 mm, 0.78 to 0.25 K/W, black anodized, 10021605
Unit Price (€ / pc.)
37.3779 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
37.38 € *
Price list
Quantity
Price per unit*
1 pcs.
37.3779 €
2 pcs.
34.9741 €
5 pcs.
32.8559 €
10 pcs.
30.5354 €
*incl. VAT plus shipping costs
Subject to prior sale
Standard extruded heatsink, 10021605, Fischer Elektronik
Standard extruded heatsink with thermal resistance: 0.78-0.25 K/W, Surface: black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 0.25 K/W | |
| Max. heat resistance | 0.78 K/W | |
| Length | 100 mm | |
| Width | 235 mm | |
| Height | 60 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
