10021511 | Fischer Elektronik

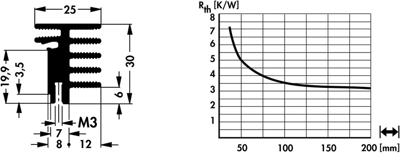

Extruded heatsink, (L x W x H) 50 x 25 x 30 mm, 7.2 to 3.4 K/W, black anodized, 10021511
Unit Price (€ / pc.)
1.9516 € *
Standard delivery time from the manufacturer is: 2 Weeks

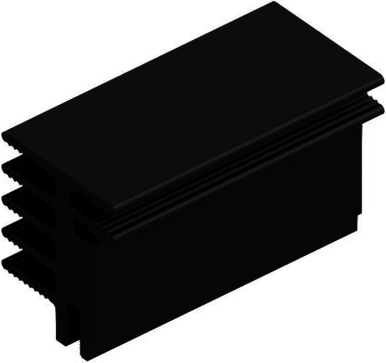

Extruded heatsink, 10021511, Fischer Elektronik
Extruded heatsink for lock-in retaining spring, also for THFU 1-3+6+7, Profile threads, Surface: black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 3.4 K/W | |
| Length | 50 mm | |
| Max. heat resistance | 7.2 K/W | |
| Material | aluminum | |
| Width | 25 mm | |
| Suitable for | snap-in transistor retaining spring | |
| Height | 30 mm | |
| Surface type | black anodized | |
| Version | extruded heatsink |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
