10021034 | Fischer Elektronik

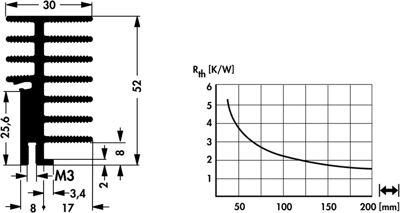

Extruded heatsink, (L x W x H) 75 x 30 x 52 mm, 6 to 2.2 K/W, black anodized, 10021034
Unit Price (€ / pc.)
5.0456 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.05 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0456 €
10 pcs.
4.6886 €
25 pcs.
4.3792 €
50 pcs.
3.9746 €
*incl. VAT plus shipping costs
Subject to prior sale

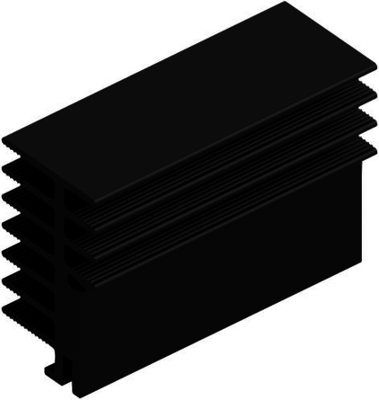

Extruded heatsink, 10021034, Fischer Elektronik
Extruded heatsinkfor lock-in retaining spring, also for THFU 1-4+6, Profile threads, Surface: black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 2.2 K/W | |
| Length | 75 mm | |
| Max. heat resistance | 6 K/W | |
| Material | aluminum | |
| Width | 30 mm | |
| Suitable for | snap-in transistor retaining spring | |
| Height | 52 mm | |
| Surface type | black anodized | |
| Version | extruded heatsink |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
