10020959 | Fischer Elektronik

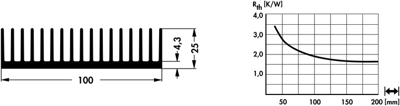

Extruded heatsink, (L x W x H) 100 x 100 x 25 mm, 3.4 to 1.7 K/W, black anodized, 10020959
Unit Price (€ / pc.)
10.4125 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
10.41 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4125 €
5 pcs.
9.8770 €
10 pcs.
9.2463 €
25 pcs.
8.4252 €
*incl. VAT plus shipping costs
Subject to prior sale

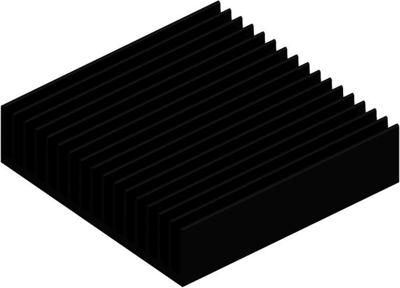

Standard extruded heatsink, 10020959, Fischer Elektronik
Standard extruded heatsink with thermal resistance: 3.4-1.7 K/W, Surafce: black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 100 mm | |
| Surface type | black anodized | |
| Min. heat resistance | 1.7 K/W | |
| Length | 100 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Height | 25 mm | |
| Max. heat resistance | 3.4 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
