10020796 | Fischer Elektronik
Extruded heatsink, (L x W x H) 37.5 x 47.8 x 33 mm, 5.3 to 2.2 K/W, black anodized, 10020796
Unit Price (€ / pc.)
3.1773 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.18 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1773 €
10 pcs.
2.9512 €
25 pcs.
2.7489 €
50 pcs.
2.4990 €
*incl. VAT plus shipping costs
Subject to prior sale

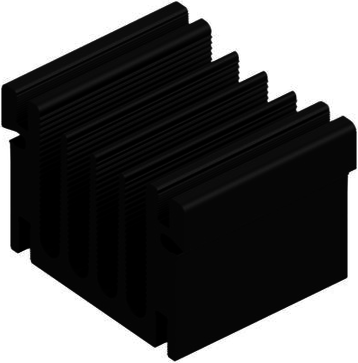

Profile heatsink for snap-on transistor retaining clips, type Fischer SK 495 SA.
Made of black anodized aluminum. The retaining clip that is inserted or pressed into the provided is available on separate order.

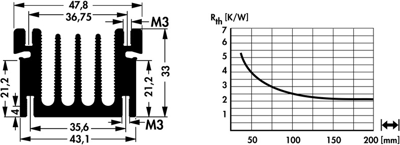

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 37.5 mm | |
| Max. heat resistance | 5.3 K/W | |
| Height | 33 mm | |
| Material | aluminum | |
| Min. heat resistance | 2.2 K/W | |
| Width | 47.8 mm | |
| Suitable for | snap-in transistor retaining spring | |
| Surface type | black anodized | |
| Version | extruded heatsink |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
