10020705 | Fischer Elektronik

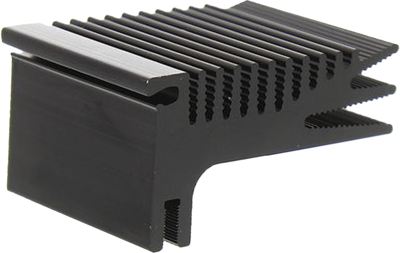

Extruded heatsink, (L x W x H) 75 x 52.3 x 28 mm, 6.5 to 1.4 K/W, black anodized, 10020705
Unit Price (€ / pc.)
4.5815 € *
Standard delivery time from the manufacturer is: On Request
Profile heatsink for snap-on transistor retaining clips, type Fischer SK 487 SA.
Made of black anodized aluminum. The retaining clip that is inserted or pressed into the provided is available on separate order.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 52.3 mm | |
| Height | 28 mm | |
| Length | 75 mm | |
| Min. heat resistance | 1.4 K/W | |
| Max. heat resistance | 6.5 K/W | |
| Version | extruded heatsink | |
| Material | aluminum | |
| Surface type | black anodized | |
| Suitable for | snap-in transistor retaining spring |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
