10020664 | Fischer Elektronik
Extruded heatsink, (L x W x H) 100 x 57 x 28 mm, 6 to 2.3 K/W, natural aluminum, 10020664
Unit Price (€ / pc.)
5.4383 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.44 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4383 €
10 pcs.
5.0456 €
25 pcs.
4.7124 €
50 pcs.
4.2840 €
*incl. VAT plus shipping costs
Subject to prior sale

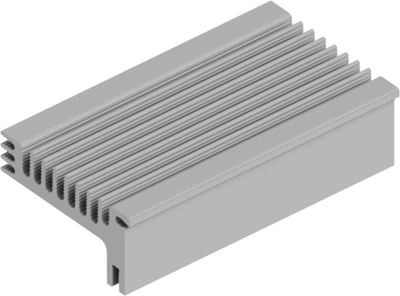

Extruded heatsink, 10020664, Fischer Elektronik

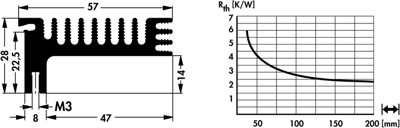

Extruded heatsink for lock-in retaining spring, also for THFU 1-4+6+7, Profile threads, Surface: raw degreased aluminium (by the metre raw aluminium).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 2.3 K/W | |
| Length | 100 mm | |
| Max. heat resistance | 6 K/W | |
| Material | aluminum | |
| Width | 57 mm | |
| Suitable for | snap-in transistor retaining spring | |
| Height | 28 mm | |
| Surface type | natural aluminum | |
| Version | extruded heatsink |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
