10020633 | Fischer Elektronik

Extruded heatsink, (L x W x H) 84 x 30 x 45 mm, 5.7 to 2.2 K/W, black anodized, 10020633

Order No.: 65B883
EAN: 4099889473391
MPN:
10020633
SK 481 84 SA
Series: SK

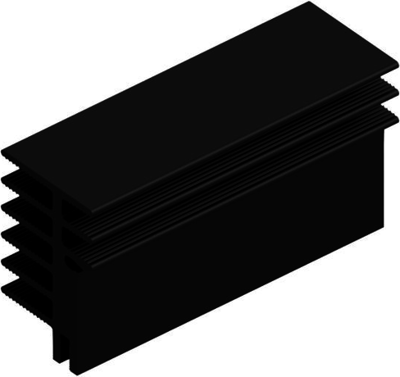

10020633 Fischer Elektronik Heat Sinks Image 1

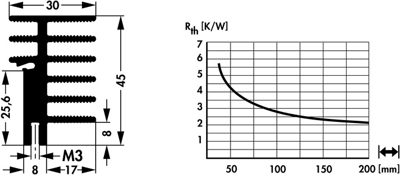

10020633 Fischer Elektronik Heat Sinks Image 2
Image may differ
Unit Price (€ / pc.)
5.4383 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.44 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4383 €
10 pcs.
5.0456 €
25 pcs.
4.7124 €
50 pcs.
4.2840 €
*incl. VAT plus shipping costs
Subject to prior sale

Extruded heatsink, 10020633, Fischer Elektronik

Extruded heatsink for lock-in retaining spring for THFU 1-4+6, Profile threads.

Technical specifications
Filter Property Value
Length 84 mm
Max. heat resistance 5.7 K/W
Height 45 mm
Material aluminum
Min. heat resistance 2.2 K/W
Width 30 mm
Suitable for snap-in transistor retaining spring
Surface type black anodized
Version extruded heatsink
Logistics
Property Value
Customs tariff number 76042990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
