10020625 | Fischer Elektronik

Extruded heatsink, (L x W x H) 25 x 30 x 45 mm, 5.7 to 2.2 K/W, black anodized, 10020625

Order No.: 70B6652
EAN: 4099889475333
MPN:
10020625
SK 481 25 SA
Series: SK

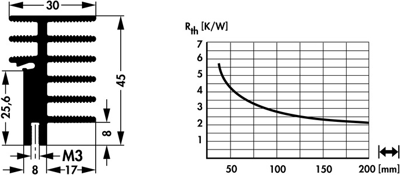

10020625 Fischer Elektronik Heat Sinks Image 1

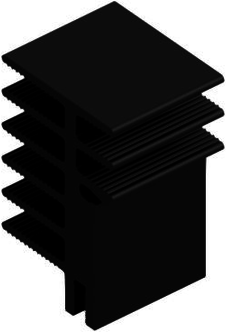

10020625 Fischer Elektronik Heat Sinks Image 2
Image may differ
Unit Price (€ / pc.)
1.9754 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.9754 €

Profile heatsink for snap-on transistor retaining clips, type Fischer SK 481 SA.

Made of black anodized aluminum. The retaining clip that is inserted or pressed into the provided is available on separate order.

Technical specifications
Filter Property Value
Max. heat resistance 5.7 K/W
Material aluminum
Suitable for snap-in transistor retaining spring
Version extruded heatsink
Min. heat resistance 2.2 K/W
Width 30 mm
Surface type black anodized
Height 45 mm
Length 25 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 76042990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
