10020511 | Fischer Elektronik

Extruded heatsink, (L x W x H) 1000 x 200 x 40 mm, 1.05 to 0.45 K/W, natural aluminum, 10020511

Order No.: 65B881
EAN: 4099889473377
MPN:
10020511
SK 47 1000 AL
Series: SK

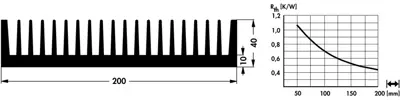

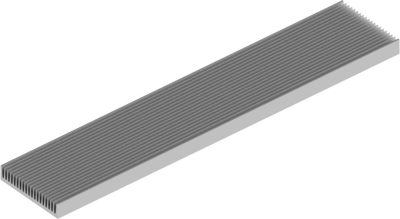

10020511 Fischer Elektronik Heat Sinks Image 1
10020511 Fischer Elektronik Heat Sinks Image 2
Image may differ
Unit Price (€ / pc.)
230.7291 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
230.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
230.7291 €

Standard extruded heatsink, 10020511, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 1.05-0.45 K/W, Surafce: raw degreased aluminium (by the metre raw aluminium).

Technical specifications
Width 200 mm
Height 40 mm
Length 1000 mm
Min. heat resistance 0.45 K/W
Max. heat resistance 1.05 K/W
Version extruded heatsink
Material aluminum
Surface type natural aluminum
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
