10020432 | Fischer Elektronik
Extruded heatsink, (L x W x H) 100 x 84 x 40 mm, 2.8 to 0.9 K/W, black anodized, 10020432
Unit Price (€ / pc.)
13.3518 € *
Available: 1 pcs.
Total Price:
13.35 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3518 €
5 pcs.
12.6616 €
10 pcs.
11.8405 €
25 pcs.
10.7933 €
*incl. VAT plus shipping costs
Subject to prior sale

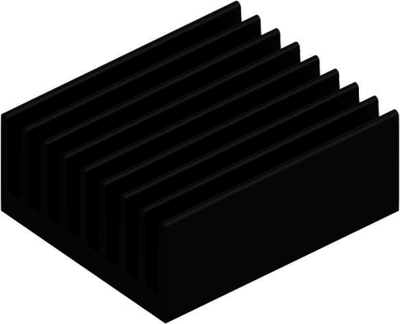

Standard extruded heatsink, 10020432, Fischer Elektronik

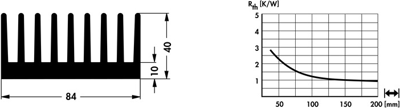

Standard extruded heatsink with thermal resistance: 2.8-0.9 K/W, Surface: black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 0.9 K/W | |
| Length | 100 mm | |
| Max. heat resistance | 2.8 K/W | |
| Material | aluminum | |
| Width | 84 mm | |
| Height | 40 mm | |
| Surface type | black anodized | |
| Version | extruded heatsink |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
