10020428 | Fischer Elektronik

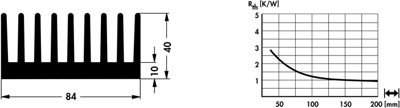

Extruded heatsink, (L x W x H) 50 x 84 x 40 mm, 2.8 to 0.9 K/W, black anodized, 10020428
Unit Price (€ / pc.)
7.8659 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
7.87 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8659 €
5 pcs.
7.4613 €
10 pcs.
6.9734 €
25 pcs.
6.3665 €
*incl. VAT plus shipping costs
Subject to prior sale

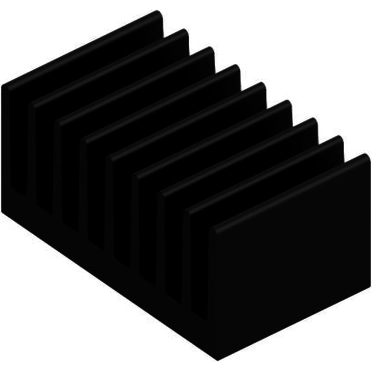

Standard extruded heatsink, 10020428, Fischer Elektronik
Standard extruded heatsink with thermal resistance: 2.8-0.9 K/W, Surface: black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 84 mm | |
| Surface type | black anodized | |
| Min. heat resistance | 0.9 K/W | |
| Length | 50 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Height | 40 mm | |
| Max. heat resistance | 2.8 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
