10020224 | Fischer Elektronik
Extruded heatsink, (L x W x H) 100 x 79 x 15 mm, 5.1 to 3.1 K/W, black anodized, 10020224
Unit Price (€ / pc.)
8.4847 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
8.48 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4847 €
10 pcs.
7.4494 €
100 pcs.
6.5569 €
250 pcs.
6.3189 €
1000 pcs.
5.8905 €
*incl. VAT plus shipping costs
Subject to prior sale

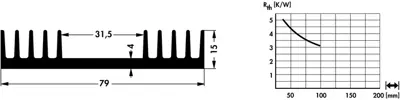

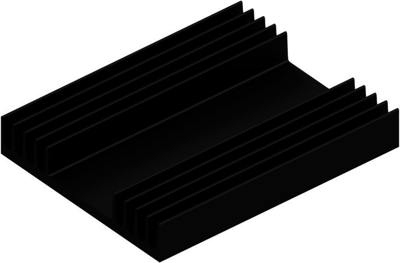

Profile heatsink, type Fischer SK 45.
Made of black anodized aluminum, no perforation. Meter section for orders as of 10 items on request.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surface type | black anodized | |
| Length | 100 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Width | 79 mm | |
| Height | 15 mm | |
| Min. heat resistance | 3.1 K/W | |
| Max. heat resistance | 5.1 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
