10020111 | Fischer Elektronik

Extruded heatsink, (L x W x H) 1000 x 250 x 83 mm, 0.49 to 0.26 K/W, natural aluminum, 10020111

Order No.: 65B858
EAN: 4099889473186
MPN:
10020111
SK 438 1000 AL
Series: SK

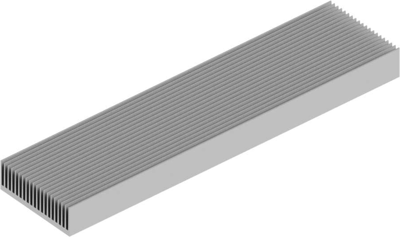

10020111 Fischer Elektronik Heat Sinks Image 1

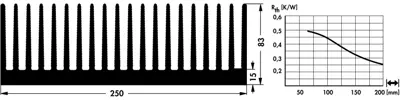

10020111 Fischer Elektronik Heat Sinks Image 2
Image may differ
Unit Price (€ / pc.)
639.8749 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
639.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
639.8749 €

Standard extruded heatsink, 10020111, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 0.49-0.26 K/W, Surafce: raw degreased aluminium (by the metre raw aluminium).

Technical specifications
Width 250 mm
Height 83 mm
Length 1000 mm
Min. heat resistance 0.26 K/W
Max. heat resistance 0.49 K/W
Version extruded heatsink
Material aluminum
Surface type natural aluminum
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
