Extruded heatsink, (L x W x H) 1000 x 169 x 10 mm, 3.75 to 1.7 K/W, black anodized, 10019825
Unit Price (€ / pc.)
91.4039 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
91.40 € *
Price list
Quantity
Price per unit*
1 pcs.
91.4039 €
2 pcs.
85.5015 €
5 pcs.
80.3250 €
10 pcs.
74.6725 €
*incl. VAT plus shipping costs
Subject to prior sale

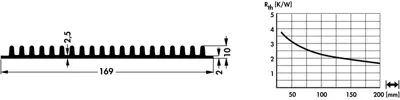

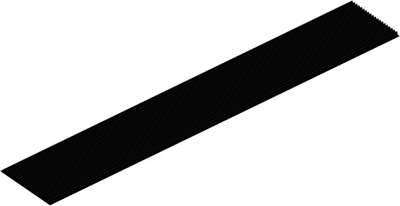

Profile heatsink, type Fischer SK 405.
Made of black anodized aluminum, no perforation, extra-flat version for side or rear panel mounting.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | extruded heatsink | |
| Max. heat resistance | 3.75 K/W | |
| Min. heat resistance | 1.7 K/W | |
| Surface type | black anodized | |
| Height | 10 mm | |
| Width | 169 mm | |
| Length | 1000 mm | |
| Material | aluminum |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
