10019722 | Fischer Elektronik
Extruded heatsink, (L x W x H) 37.5 x 50 x 12 mm, 8 to 4 K/W, black anodized, 10019722
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
10 pcs.
1.7374 €
25 pcs.
1.6303 €
50 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale

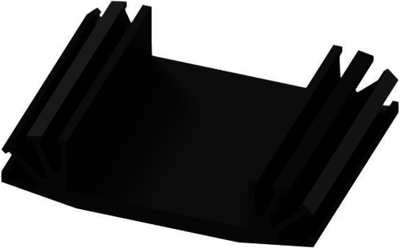

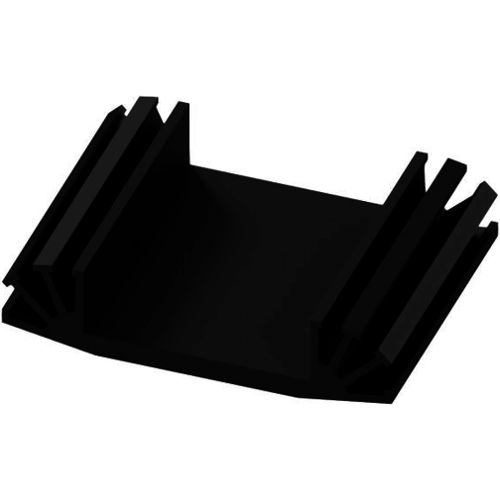

Standard extruded heatsink, 10019722, Fischer Elektronik

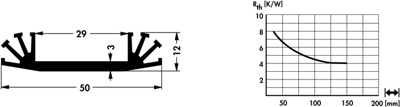

Standard extruded heatsink with thermal resistance: 8-4 K/W, Drilling pattern: TO 3, CB, Length: 37.5 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surface type | black anodized | |
| Width | 50 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Max. heat resistance | 8 K/W | |
| Min. heat resistance | 4 K/W | |
| Height | 12 mm | |
| Length | 37.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
