10019520 | Fischer Elektronik
Extruded heatsink, (L x W x H) 100 x 89 x 10 mm, 4.4 to 2.6 K/W, black anodized, 10019520
Unit Price (€ / pc.)
4.9623 € *
Available: 20 pcs.
Total Price:
4.96 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9623 €
10 pcs.
4.6053 €
25 pcs.
4.3078 €
50 pcs.
3.9151 €
*incl. VAT plus shipping costs
Subject to prior sale

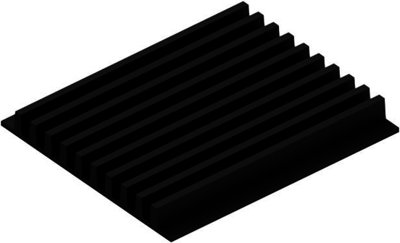

Profile heatsink, type Fischer SK 182.
Made of black anodized aluminum, no perforation, extra-flat version for side or rear panel mounting. Meter section for orders as of 10 items on request.

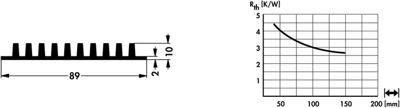

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 2.6 K/W | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Max. heat resistance | 4.4 K/W | |
| Height | 10 mm | |
| Length | 100 mm | |
| Width | 89 mm | |
| Material | aluminum |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
