10019511 | Fischer Elektronik
Extruded heatsink, (L x W x H) 100 x 50 x 20 mm, 4.25 to 3.1 K/W, black anodized, 10019511
Unit Price (€ / pc.)
5.7239 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.72 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7239 €
10 pcs.
5.3193 €
25 pcs.
4.9623 €
50 pcs.
4.5101 €
*incl. VAT plus shipping costs
Subject to prior sale

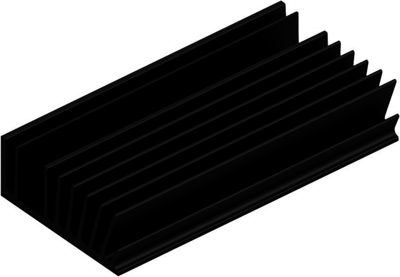

Standard extruded heatsink, 10019511, Fischer Elektronik

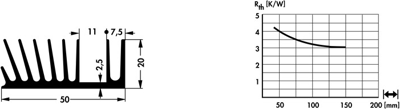

Standard extruded heatsink with thermal resistance: 4.25-3.1 K/W, Surafce: black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 50 mm | |
| Surface type | black anodized | |
| Min. heat resistance | 3.1 K/W | |
| Length | 100 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Height | 20 mm | |
| Max. heat resistance | 4.25 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
