10019422 | Fischer Elektronik

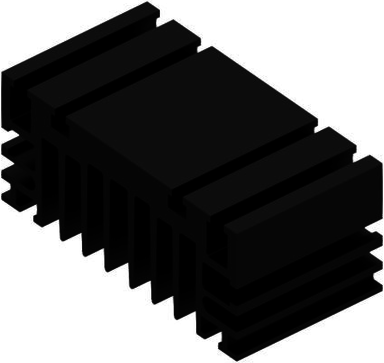

Extruded heatsink, (L x W x H) 50 x 96 x 41 mm, 2 to 0.7 K/W, black anodized, 10019422
Unit Price (€ / pc.)
7.5684 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
7.57 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5684 €
5 pcs.
7.1757 €
10 pcs.
6.7235 €
25 pcs.
6.1285 €
*incl. VAT plus shipping costs
Subject to prior sale

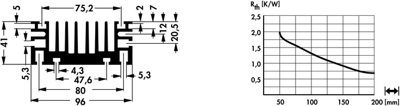

Profile heatsink for solid-state relays, type Fischer SK 172.
Made of aluminum, black anodized. Non-perforated. Corresponding solid-state load relays (versions for screw-on mounting).
Base dimension: 57 x 44.5 mm. Should be mounted in combination with thermal transfer compound.
Length: 50 mm
Heat dissipation: 2.0 K/W
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 0.7 K/W | |
| Max. heat resistance | 2 K/W | |
| Length | 50 mm | |
| Width | 96 mm | |
| Height | 41 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
