10019219 | Fischer Elektronik
Extruded heatsink, (L x W x H) 1000 x 420 x 40 mm, 0.69 to 0.41 K/W, black anodized, 10019219
Unit Price (€ / pc.)
452.3071 € *
Standard delivery time from the manufacturer is: 2 Weeks
Standard extruded heatsink, SK 130 1000 SA, Fischer Elektronik

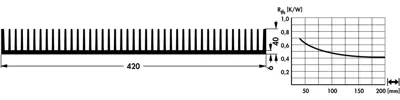

Standard extruded heatsink with thermal resistance: 0.69-0.41 K/W, Surface: black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 420 mm | |
| Surface type | black anodized | |
| Min. heat resistance | 0.41 K/W | |
| Length | 1000 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Height | 40 mm | |
| Max. heat resistance | 0.69 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
