Extruded heatsink, (L x W x H) 25.4 x 42 x 25 mm, 7.8 K/W, black anodized, 10019187
Unit Price (€ / pc.)
4.3554 € *
Available: 130 pcs.
Total Price:
4.36 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3554 €
10 pcs.
3.8318 €
100 pcs.
3.3558 €
250 pcs.
3.2249 €
1000 pcs.
3.0226 €
*incl. VAT plus shipping costs
Subject to prior sale

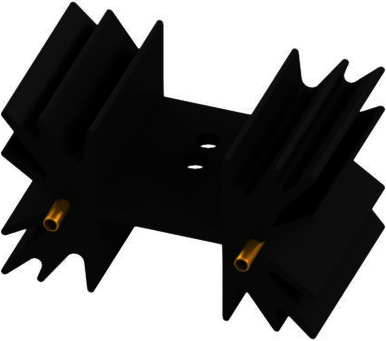

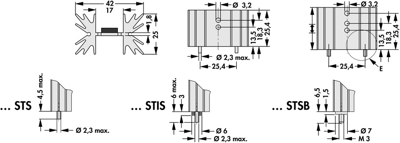

Heatsink with perforation, type Fischer SK 129-STS.
With solder pins. For TO 220, SOT 32, and TO 3 P. For screw mounting. Made of black anodized aluminum.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 7.8 K/W | |
| Material | aluminum | |
| Suitable for | semiconductors | |
| Version | extruded heatsink | |
| Width | 42 mm | |
| Surface type | black anodized | |
| Height | 25 mm | |
| Length | 25.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
