10019158 | Fischer Elektronik
Extruded heatsink, (L x W x H) 50 x 30 x 28 mm, 9.1 to 4.9 K/W, black anodized, 10019158
Unit Price (€ / pc.)
2.4038 € *
Available: 16 pcs.
Total Price:
2.40 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4038 €
10 pcs.
2.2372 €
50 pcs.
2.0587 €
100 pcs.
1.8683 €
*incl. VAT plus shipping costs
Subject to prior sale

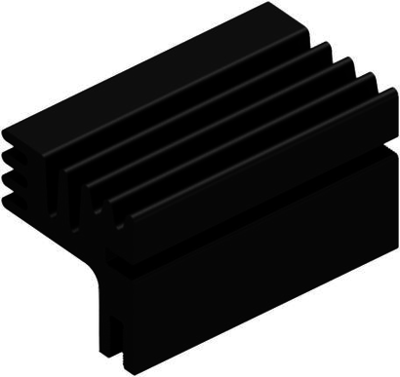

Profile heatsink, type Fischer SK 125.
Made of black anodized aluminum, no perforation. Meter section for orders as of 10 items on request.

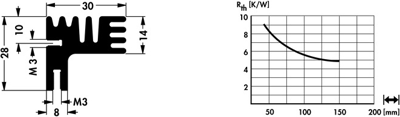

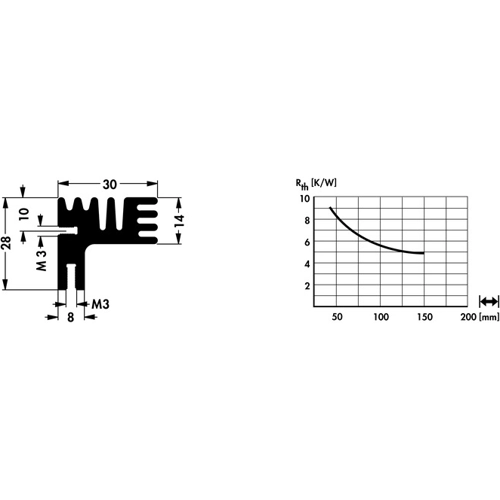

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 9.1 K/W | |
| Version | extruded heatsink | |
| Min. heat resistance | 4.9 K/W | |
| Width | 30 mm | |
| Material | aluminum | |
| Height | 28 mm | |
| Surface type | black anodized | |
| Suitable for | PCB mounting | |
| Length | 50 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
