10019079 | Fischer Elektronik
Extruded heatsink, (L x W x H) 75 x 200 x 20 mm, 1.8 to 0.75 K/W, black anodized, 10019079
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.7925 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
12.79 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7925 €
5 pcs.
12.1261 €
10 pcs.
11.3407 €
25 pcs.
10.3411 €
*incl. VAT plus shipping costs
Subject to prior sale

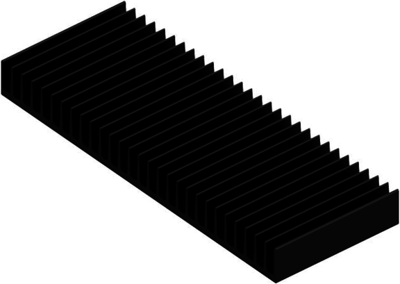

Standard extruded heatsink, SK 113 75 SA, Fischer Elektronik

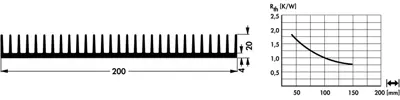

Standard extruded heatsink with thermal resistance: 1.8-0.75 K/W, Surface, black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 0.75 K/W | |
| Max. heat resistance | 1.8 K/W | |
| Length | 75 mm | |
| Width | 200 mm | |
| Height | 20 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
