10018995 | Fischer Elektronik
Extruded heatsink, (L x W x H) 50.8 x 34.9 x 12.7 mm, 9 K/W, black anodized, 10018995
Unit Price (€ / pc.)
2.7370 € *
Available: 97 pcs.
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7370 €
10 pcs.
2.4752 €
50 pcs.
2.2253 €
100 pcs.
2.1063 €
500 pcs.
1.9873 €
*incl. VAT plus shipping costs
Subject to prior sale

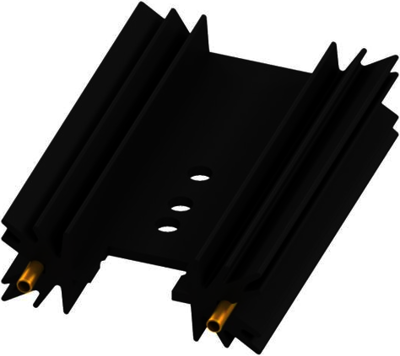

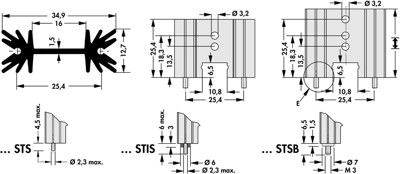

Extruded heatsink, perforated, for PCB mounting, type Fischer SK 104..STS.
For TO 220, SOT 32, TO 3 P. For screw mounting. Made of black anodized aluminum.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surface type | black anodized | |
| Height | 12.7 mm | |
| Version | extruded heatsink | |
| Material | aluminum | |
| Width | 34.9 mm | |
| Suitable for | semiconductors | |
| Length | 50.8 mm | |
| Max. heat resistance | 9 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
