10018889 | Fischer Elektronik
Extruded heatsink, (L x W x H) 37.5 x 70 x 15 mm, 5 to 3 K/W, black anodized, 10018889
No longer available from manufacturer
Unit Price (€ / pc.)
2.5466 € *
Available: 3 pcs.
Total Price:
2.55 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5466 €
25 pcs.
2.1658 €
100 pcs.
1.9992 €
250 pcs.
1.9040 €
1000 pcs.
1.7374 €
*incl. VAT plus shipping costs
Subject to prior sale

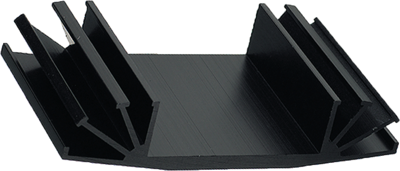

Profile heatsink, type Fischer SK 07.
Made of black anodized aluminum, no perforation. Meter section for orders as of 10 items on request.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 70 mm | |
| Suitable for | cover plates | |
| Surface type | black anodized | |
| Min. heat resistance | 3 K/W | |
| Length | 37.5 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Height | 15 mm | |
| Max. heat resistance | 5 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
