Extruded heatsink, 37.5 x 97 x 25 mm, 2.8 to 1.3 K/W, black anodized

Order No.: 70B810
EAN: 4099889475975
MPN:
10018850
SK 04 37,5 SA
Series: SK
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 1.3 K/W
Max. heat resistance 2.8 K/W
Length 37.5 mm
Width 97 mm
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.499 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Add to Cart
Total Price:
2.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.499 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

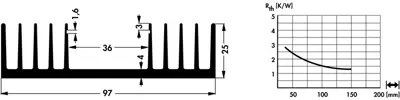

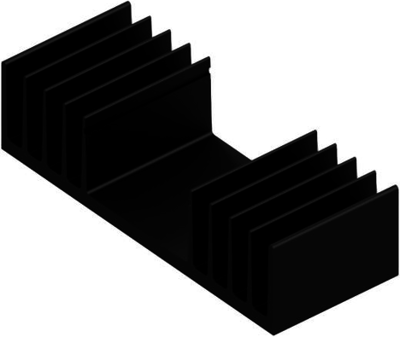

Profile heatsinks, type Fischer SK 04.

Made of aluminum, black anodized, non-perforated. CB perforation stands for universal perforations for TO 3 + SOT 9 + TO 66 + SOT 32.
Technical specifications
Version profile heatsink
Width 97 mm
Height 25 mm
Length 37.5 mm
Material die-cast aluminum
Max. heat resistance 2.8 K/W
Min. heat resistance 1.3 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
