10006503 | Fischer Elektronik
Clip-on heatsink, (L x W x H) 44.45 x 14.5 x 13.51 mm, 16 K/W, black anodized, 10006503
Unit Price (€ / pc.)
3.7128 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.71 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7128 €
10 pcs.
3.4391 €
25 pcs.
3.2130 €
50 pcs.
2.9155 €
*incl. VAT plus shipping costs
Subject to prior sale

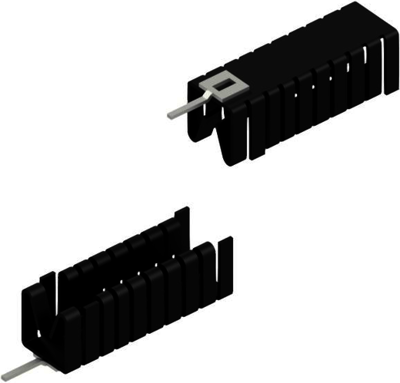

Attachable heatsink, 10006503, Fischer Elektronik
Attachable heatsink with tinned soldering lug for direct soldering onto circuit board for horizontal installation.

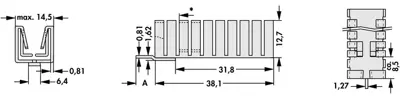

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 14.5 mm | |
| Suitable for | TO220 | |
| Surface type | black anodized | |
| Length | 44.45 mm | |
| Material | aluminum | |
| Version | clip-on heatsink | |
| Height | 13.51 mm | |
| Max. heat resistance | 16 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76169990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
