Extruded heatsink, (L x W x H) 30 x 19.4 x 28 mm, 7.8 K/W, black anodized, 10005792
Unit Price (€ / pc.)
5.7239 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.72 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7239 €
10 pcs.
5.3193 €
25 pcs.
4.9623 €
50 pcs.
4.5101 €
*incl. VAT plus shipping costs
Subject to prior sale

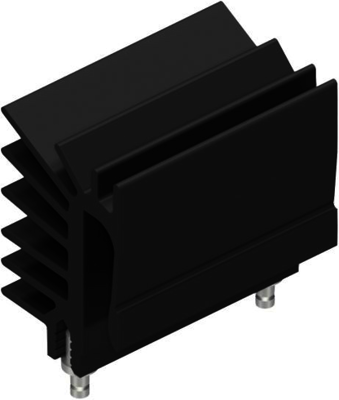

Extruded heatsink, 10005792, Fischer Elektronik
Extruded heatsink for PCB mounting, attachable heatsinks with and without solder pins, Length: 30 mm.

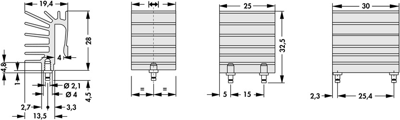

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 30 mm | |
| Width | 19.4 mm | |
| Surface type | black anodized | |
| Max. heat resistance | 7.8 K/W | |
| Suitable for | TO220 | |
| Height | 28 mm | |
| Material | aluminum | |
| Version | extruded heatsink |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
